Right Angle PCB SCSI Connector 26 pin Female MDR Connector

Name: Right Angle PCB SCSI Connector 26 pin Female MDR Connector
Brand: FUYCONN
Price: 0.2 USD

Wholesale Right Angle PCB SCSI Connector 26 pin Female MDR Connector from china suppliers

Payment Terms : T/T,Paypal

Insulation Color : Black

Insulation Material : PBT

Connector Type : Crimping CN Type

Brand Name : FUYCONN

Model Number : FUYSC079-2（26P)

Place of Origin : China

MOQ : 10pcs

Price : USD0.2-USD2/pc

Supply Ability : 100000/ week

Delivery Time : 5-8 works day

Packaging Details : Vacuum Tray + Carton

No. of contacts : 26 Pin

Plating : 3U" Gold Plating

Pitch : 1.27 mm

Gender : Female

Product Name : SCSI PCB Connector

Contact Material : Phosphore Bronze

Contact Now

Right Angle PCB SCSI Connector 26 pin Female MDR Connector

Product Overview

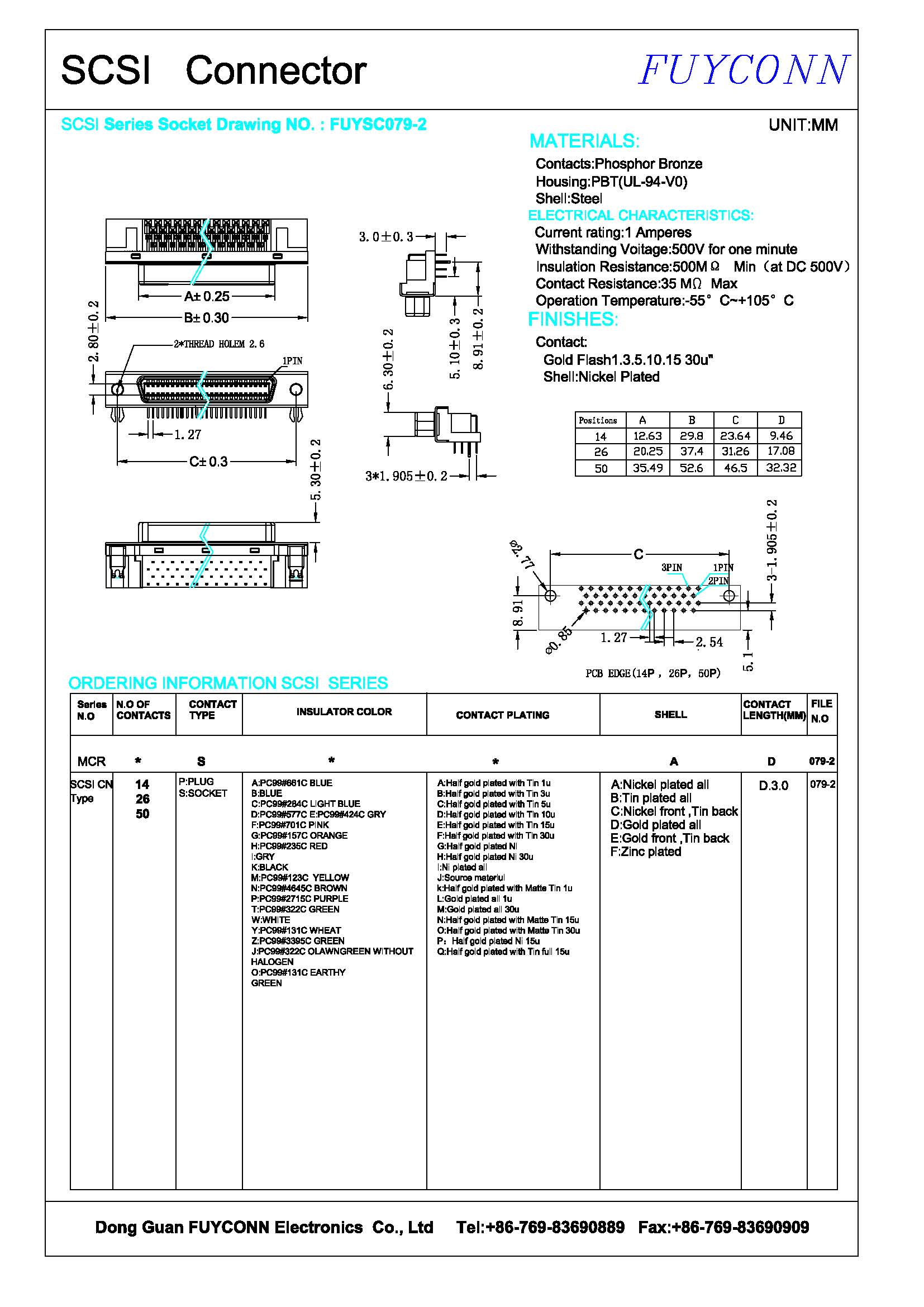

Catalog: SCSI CONNECTOR.pdf

1.27mm Pitch CN Type 26 pin PCB Right Angle SCSI Connector, 90 Degree PCB R/A Female 26pin SCSI Connector for PCB Board

SCSI (Small Computer System Interface) is a versatile interface bus designed for communication with various types of peripherals. It provides an advanced, high-speed, and cost-effective method of interconnecting computer peripherals and consumer electronic devices.

SCSI connectors are available in 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, and 100pin configurations, with both PCB and IDC crimping type versions. The internal 100 pin SCSI connector features 100 pins arranged in two rows.

Product Features

Product Line	SCSI IDC Connector
Connector Gender	Female / Male
Number of Positions	26pin
Insulator Material	PBT
Contact Material	Phosphor Bronze
Contact Plating	1U", 3U", 5U", 10U", 15U", 30U"
Color	Black
Application	FPC

Electrical Specifications

Current Rating	1AMP
Withstanding Voltage	500V for one minute
Insulation Resistance	500MΩ min (at DC500V)
Contact Resistance	35MΩ Max
Operating Temperature	-55°C to +105°C

Technical Parameters

Right Angle PCB SCSI Connector 26 pin Female MDR Connector

Type: SCSI Connector
Application: Servo
Gender: Female
Orientation: Right Angle
Insulator Material: PBT
Contact Current Rating: 1A AC/DC
Contact Resistance: Max 35m ohm
Insulator: PBT, glass-filled, UL94V-0 rated
Contact: Phosphor bronze
Back Shell: Nickel-plated
Insulation Resistance: 500MΩ (minimum)
Contact Resistance: 35mΩ (maximum)
No. of Pins: 28pin

Product Tags:

3U" SCSI PCB Connector

Black Insulation SCSI PCB Connector

Right Angle PCB SCSI Connector 26 pin Female MDR Connector Images
